SPECIFICATIONS

Brand Name: kbxstart

Capacity: No water tank

Certification: CCC,ce

Choice: yes

Control Mode: Remote Control

Energy Efficiency Grade: Grade One

High-concerned chemical: None

Installation: Wall Mounted

Model Number: XY-FA

Origin: Mainland China

Power (W): 3000W/5500W

Power Source: AC

Storage / Tankless: Instant / Tankless

Style: Vertical

Voltage: 110V/220V

Voltage (V): 220 V

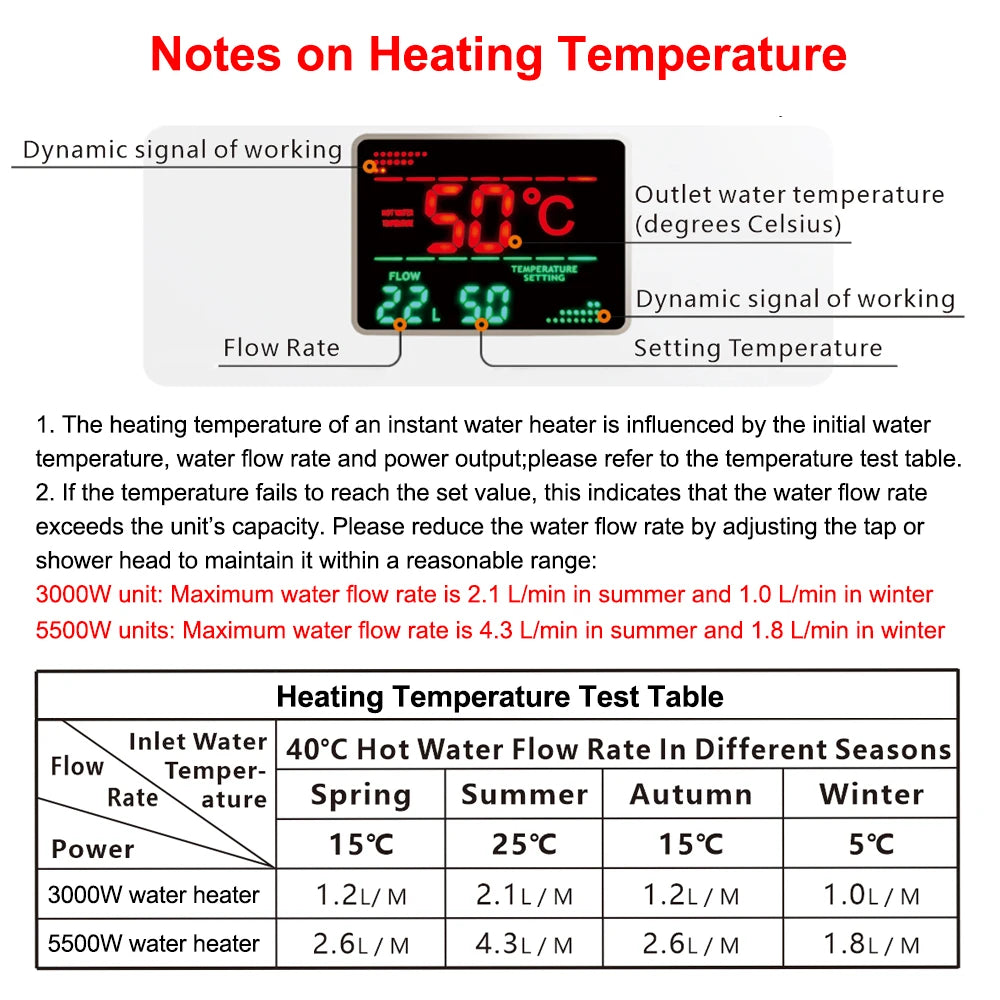

Please ensure that the water flow rate is kept within a reasonable range:

1. Instant water heaters do not have a built-in tank; their heating temperature is influenced by the inlet water temperature, water flow rate and power output. As the inlet water temperature and power output are fixed, please refer to the temperature test table and ensure the water flow rate is kept within a reasonable range; otherwise, the desired temperature cannot be achieved.

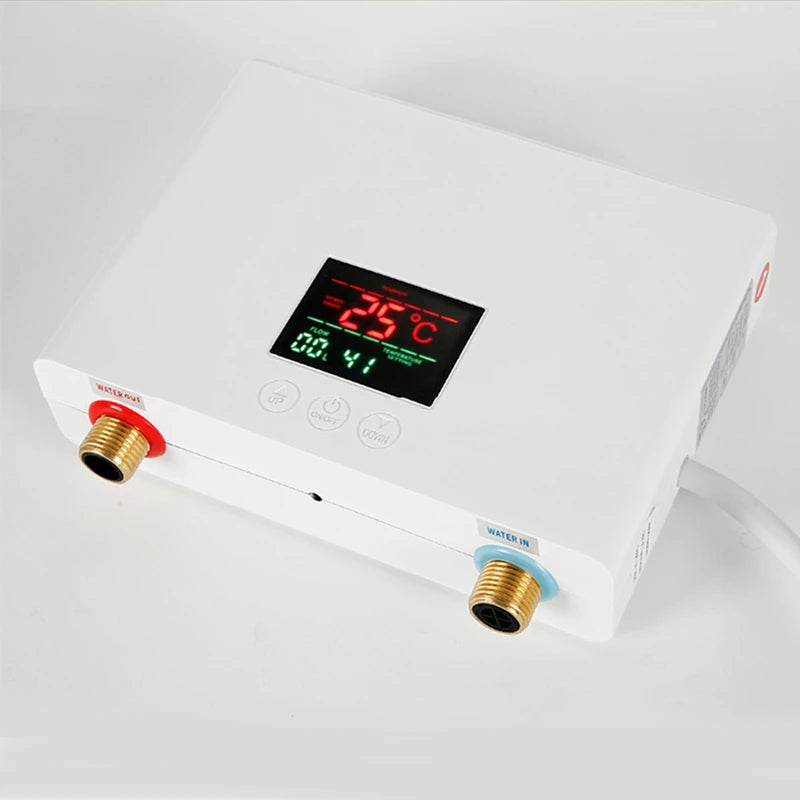

2. The current water flow rate is displayed in the bottom left corner of the screen. If the temperature fails to reach the set value, this indicates that the water flow rate exceeds the unit’s capacity. Please reduce the water flow rate by adjusting the tap or shower head to keep it within a reasonable range:

3000W model: Maximum water flow rate in summer is 2.1 L/min; maximum water flow rate in winter is 1.0 L/min

5500W model: Maximum water flow rate in summer is 4.3 L/min; maximum water flow rate in winter is 1.8 L/min

Regarding Water Pipe Installation:

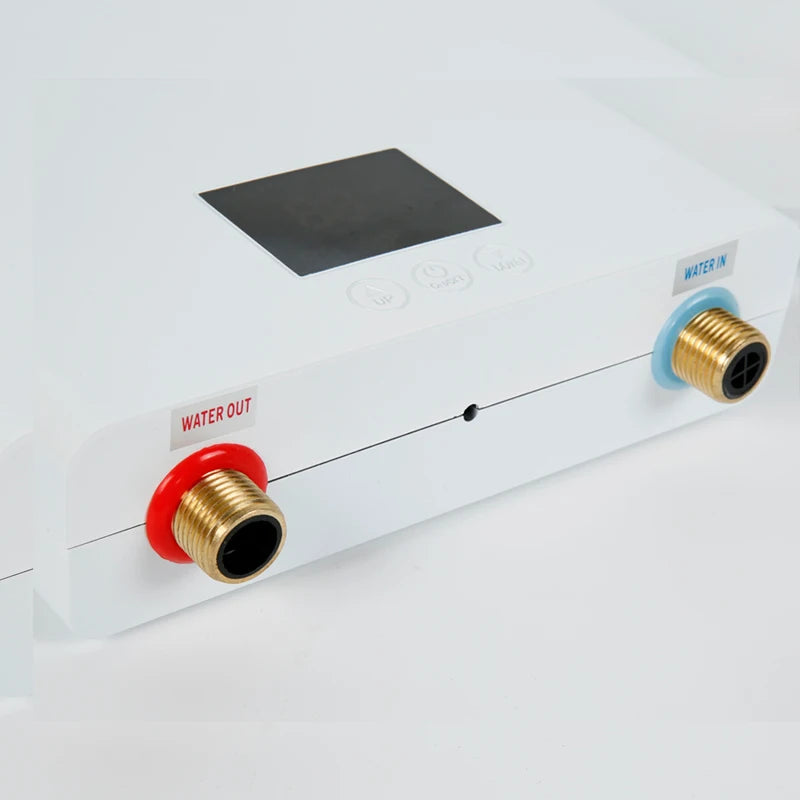

The heater's connection features a standard 1/2-inch threaded port. Water pipes should be screwed directly into this port. The use of adapters is strictly prohibited, as this may cause leaks.

Regarding installation environment specifications:

Different power ratings require distinct wiring specifications. The 110V 3000W unit necessitates 2.5mm² wiring, the 220V 3000W unit requires 1.5mm² wiring, and the 220V 5500W unit demands 2.5mm² wiring.

Regarding the display not lighting up after powering on:

This may be due to the machine’s overheating protection switch being triggered. After installation, please carry out a water circuit test first; only switch on the power once the test has been successful, otherwise the overheating protection may be activated.

Features:

1. It is a high-efficiency water heater with compact structure and can produce hot water quickly.

2. Fully automatic: open the water valve and start heating automatically; Close the water valve, stop heating and keep on standby

3. Two heating modes: custom temperature mode (30°C-55°C); Gear mode (1-3 gear or 1-5 gear)

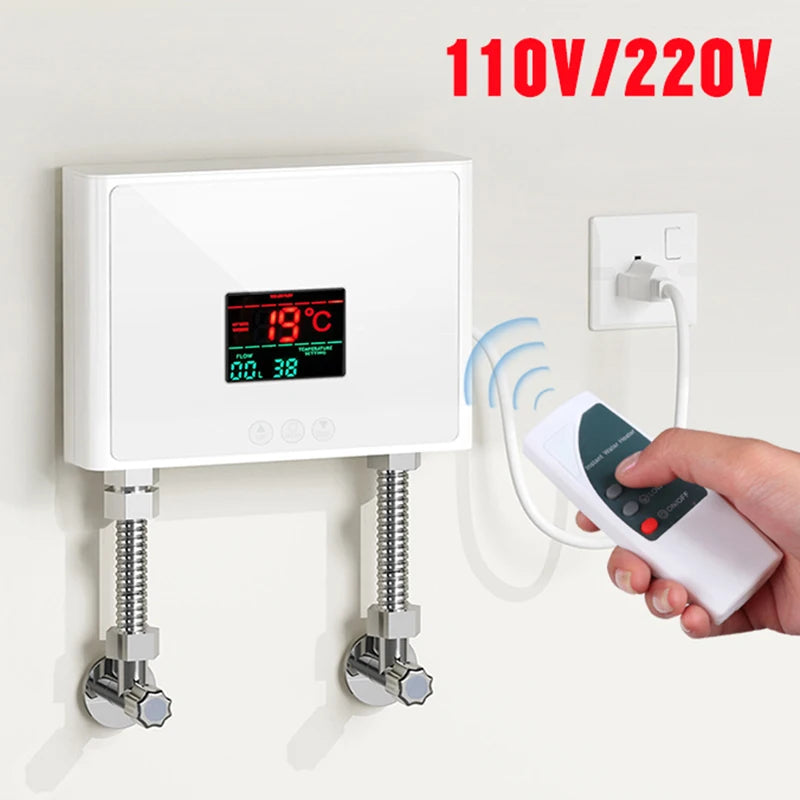

4. Two operation methods: touch operation and remote control remote operation

5. Two power versions: 3000W (suitable for summer), 5500W (suitable for winter)

6. Suitable for use in the bathroom or kitchen, easy to install, easy to use and practical.

7. This is a safe heater, energy saving, water saving, no pollution, no exhaust gas

Specifications:

Model: LF-001

Color: White,Golden,Black

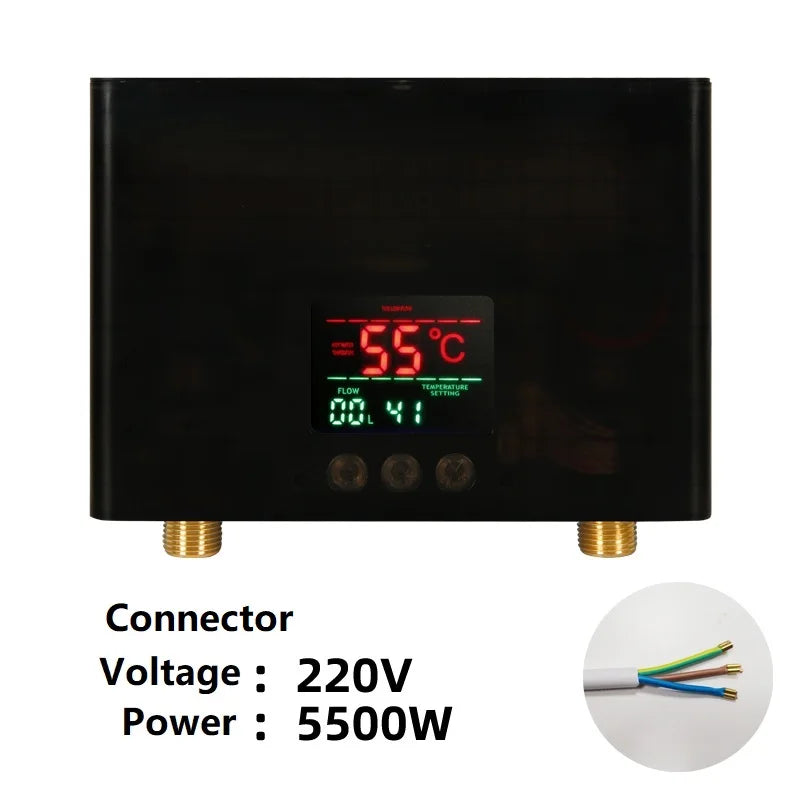

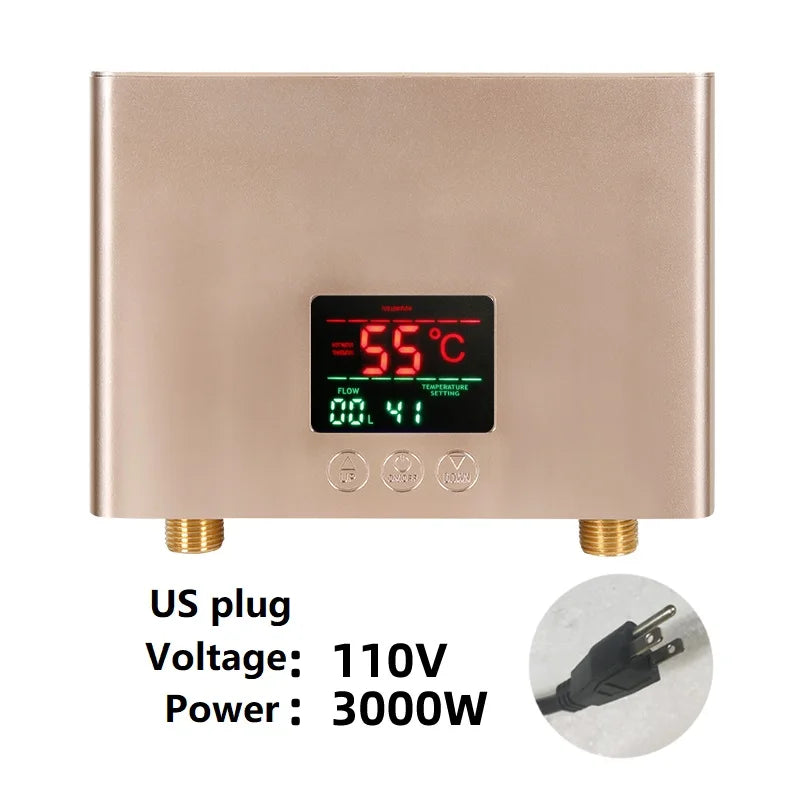

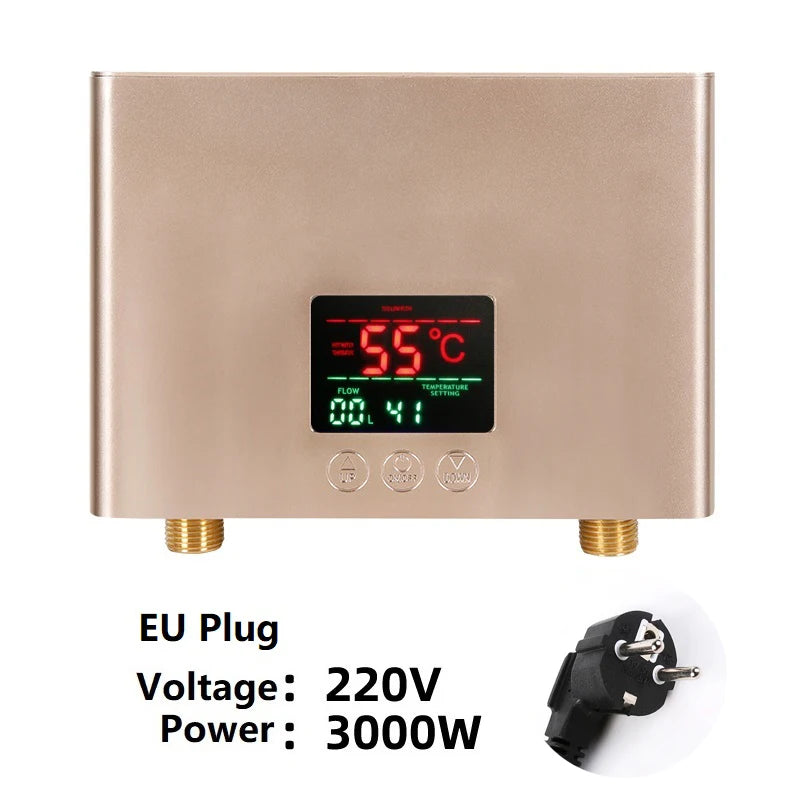

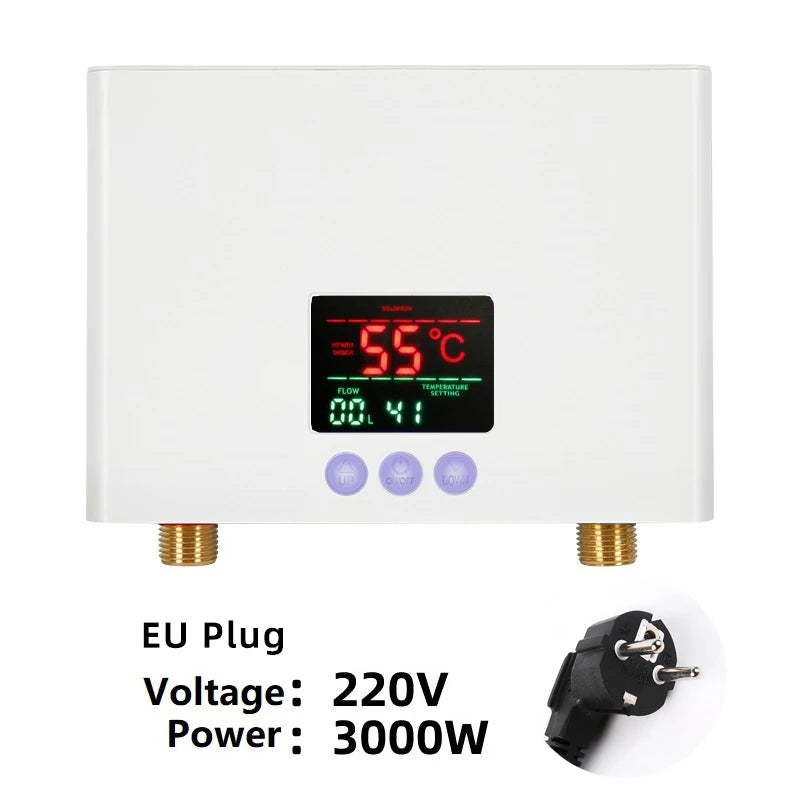

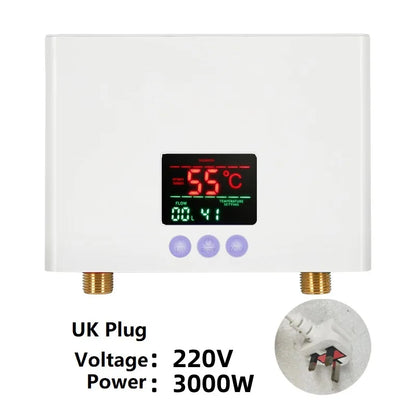

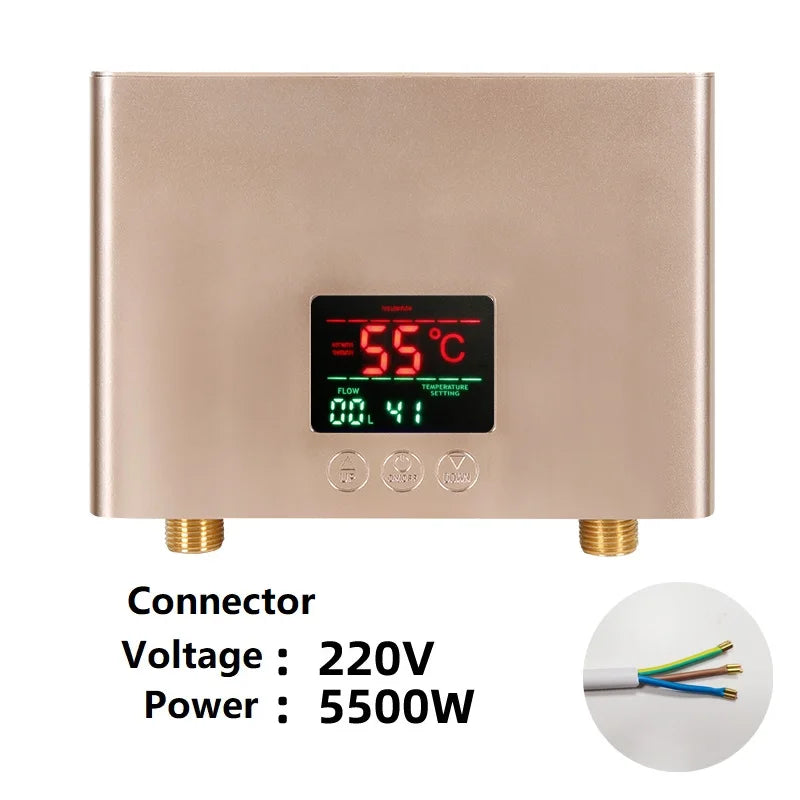

Voltage and power: 110V 3000W / 220V 3000W / 220V 5500W

Frequency: 50-60HZ

Temperature：30-55 ℃

Adjustable temperature:3 gear or 5 gear

Applicable water pressure: 0.04-1.2Mpa

Heating method: cast aluminum heater

Control method: touch + remote control

Waterproof: IPX4

Size: 210 * 150 * 55 mm/8.3*5.9*2.2inch

Weight: 1.8KG

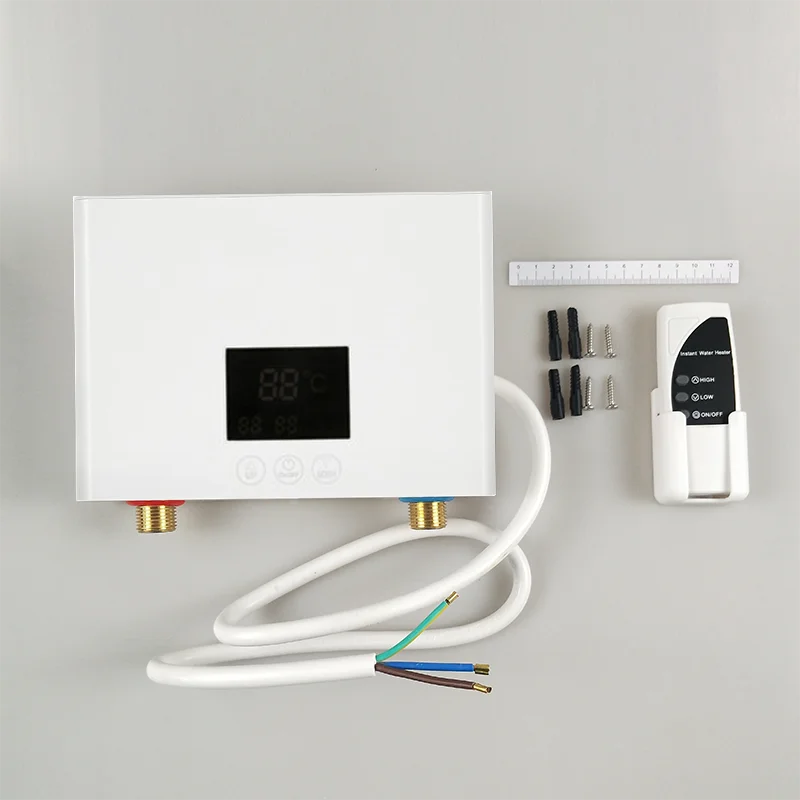

Package Included:

1* thermostatic water heater

1* remote controlle

Note:

●The first installation must first connect water and power again

●No freezing power on below zero

●This product must be installed vertically.

●Before using the machine, first turn the water on and then power on. Avoid damage.

Installation method:
