Special note:

1. Before purchasing, please tell us the type of controller board you will use. Or send photos to us for confirmation.

2. Only the protective case box, not including the controller board!

3. The product is in bulk and needs to be assembled by itself.

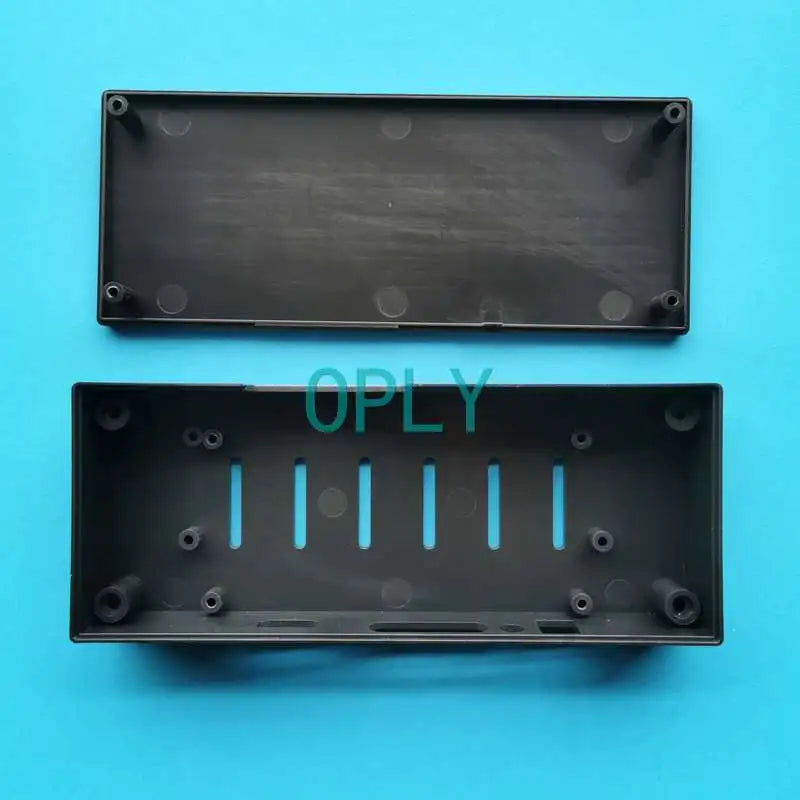

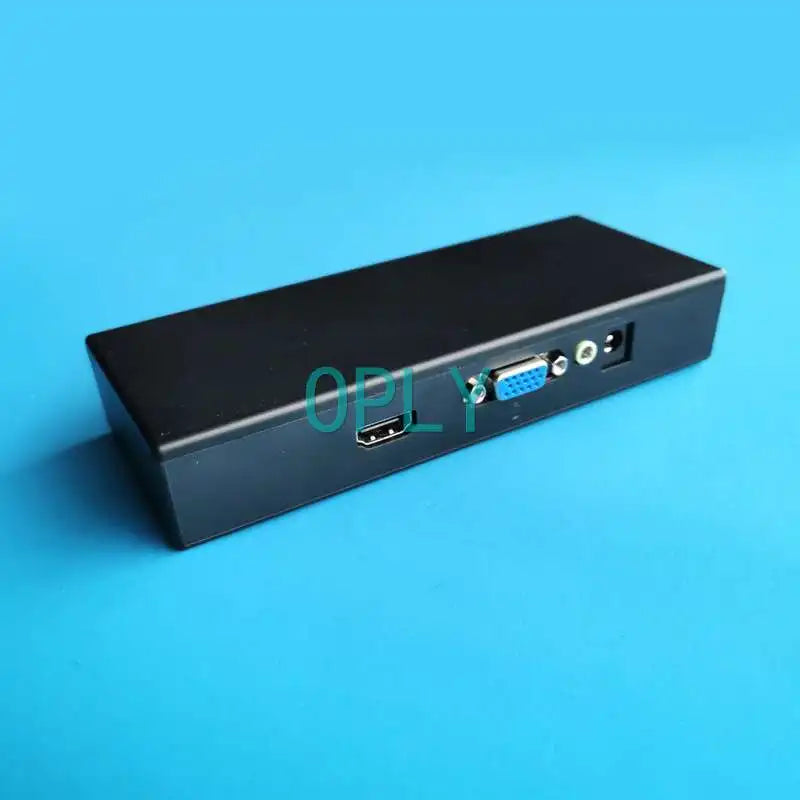

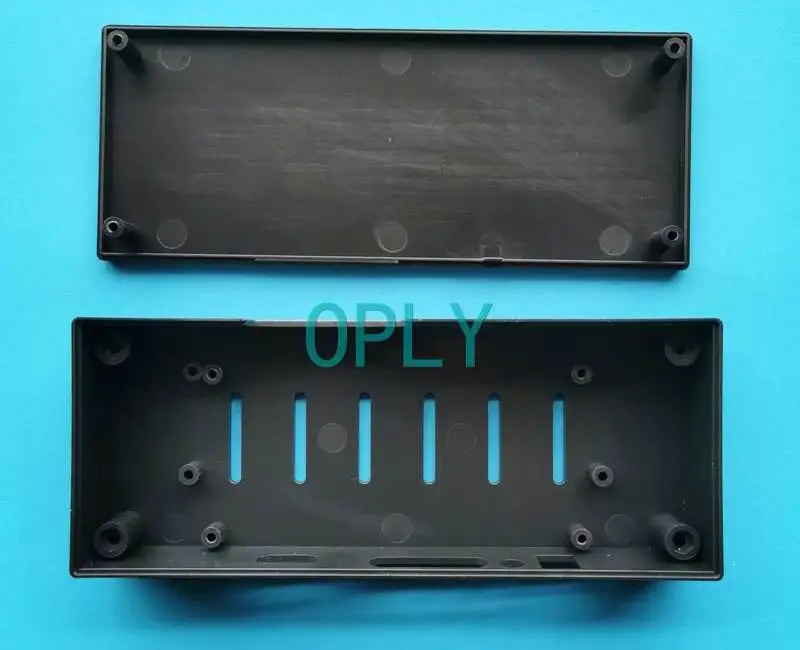

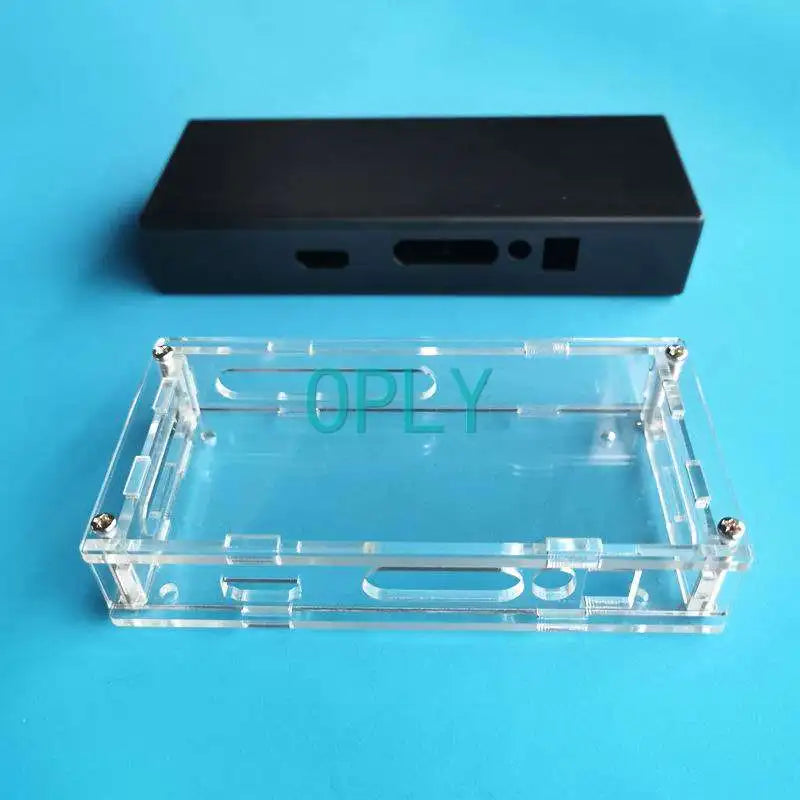

Black Plastic Box Description:

Sturdy and durable, safe insulation, better protection controller drive motherboard.

Material: Plastic

Size: 163MM*66MM*28MM



Package list:

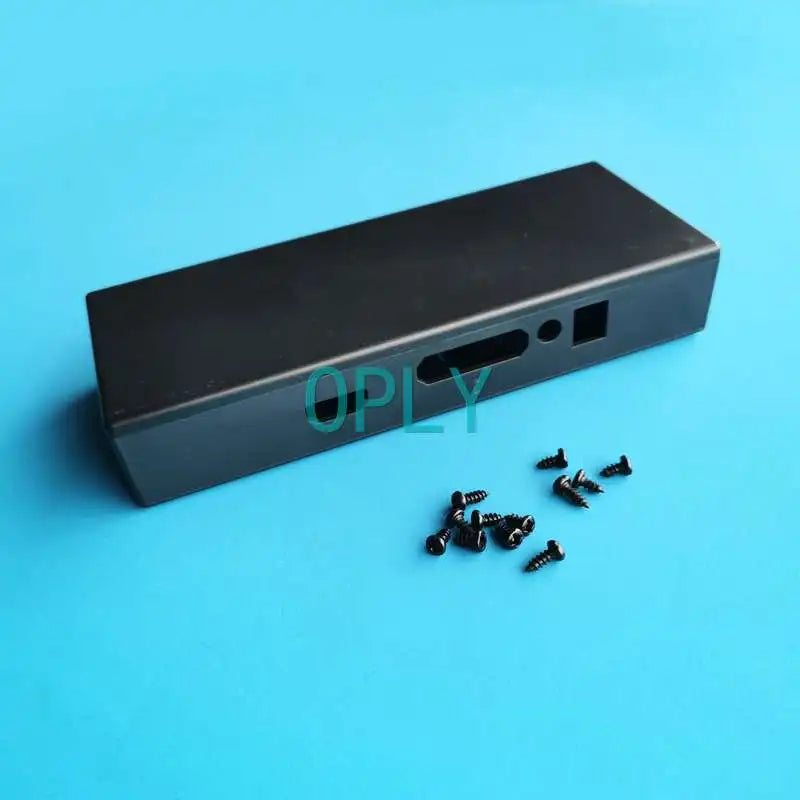

1Pcs*Black Plastic Box (including screws)

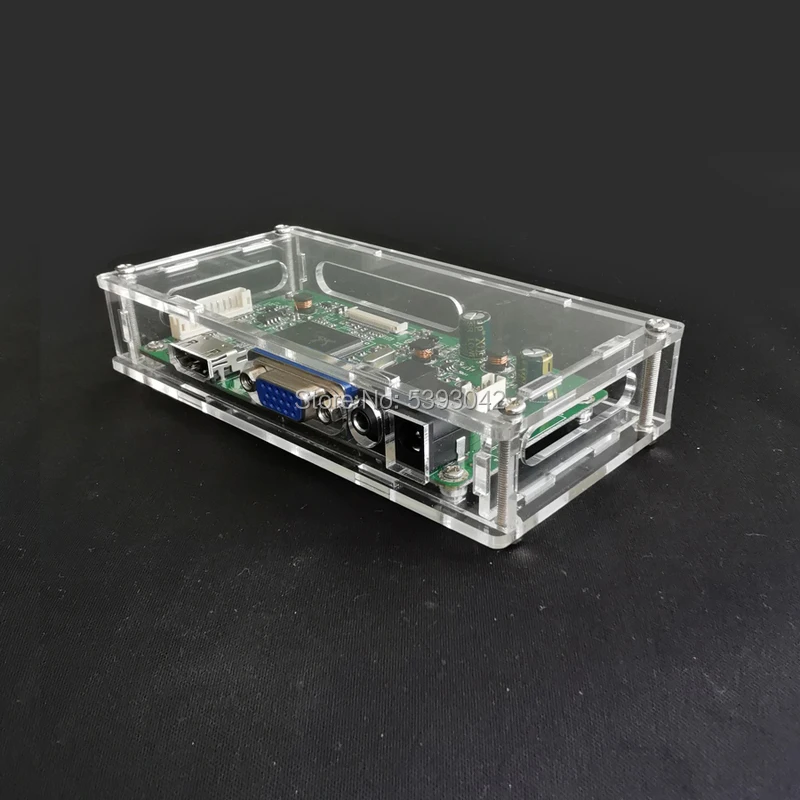

Acrylic Protect Case Description:

Transparent and beautiful, sturdy and durable, safe insulation, better protection controller drive motherboard.

Material: Acrylic

Size: 128MM*65MM*25MM

Package list:

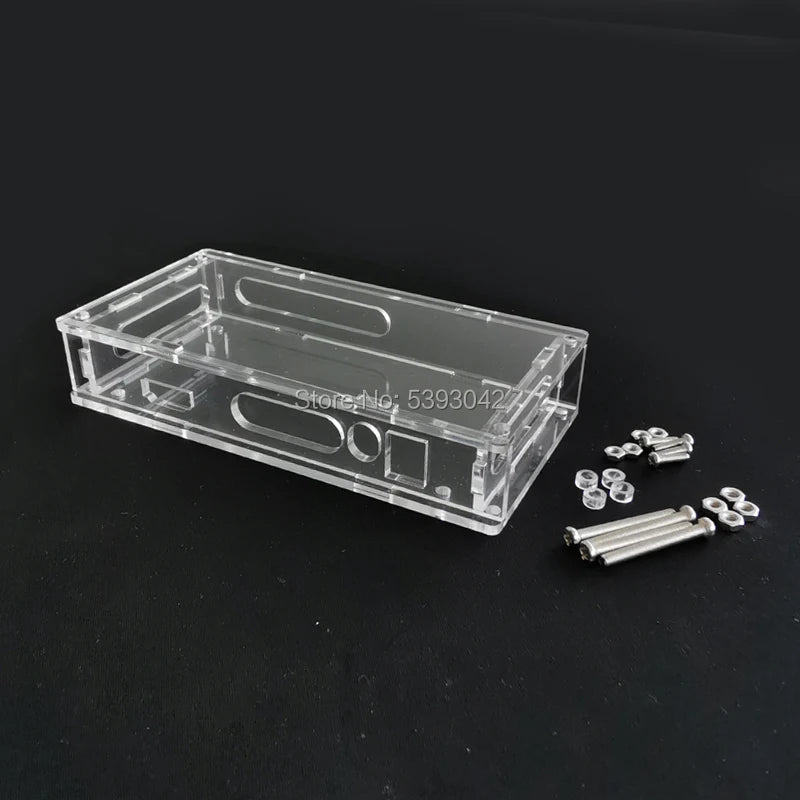

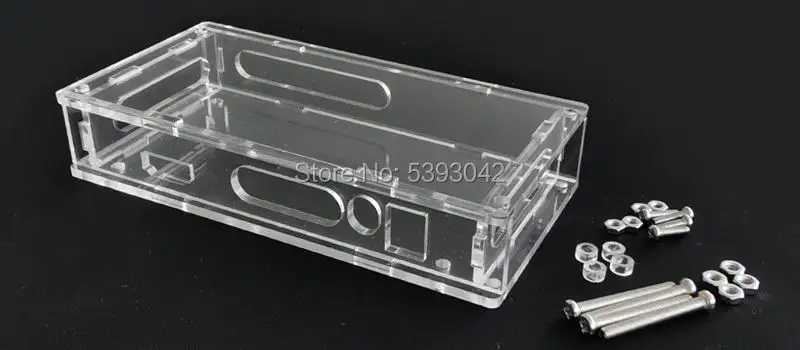

1Pcs*Acrylic Protect Case (including washers, screws, nuts)



Assembly instructions:

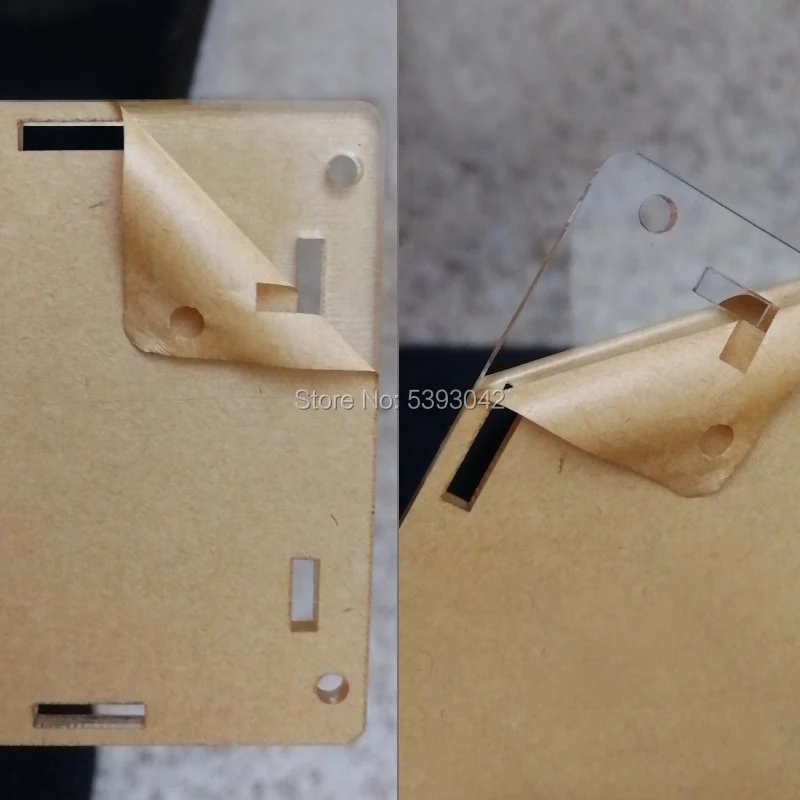

1. Before installing the product. Please check the installation dimensions and hole positions for pre-installation (note the installation direction of the bottom plate and the top plate). Then tear off the protective layer on the surface.

2. Place the washer between the controller board and the bottom plate, and screw on the nut. (Don't screw it too tight, easy to install the side plate)

3. Install the side plate and cover the top plate. Use long nuts to secure the protective box.

Please refer to the picture below. Hope that helps.
